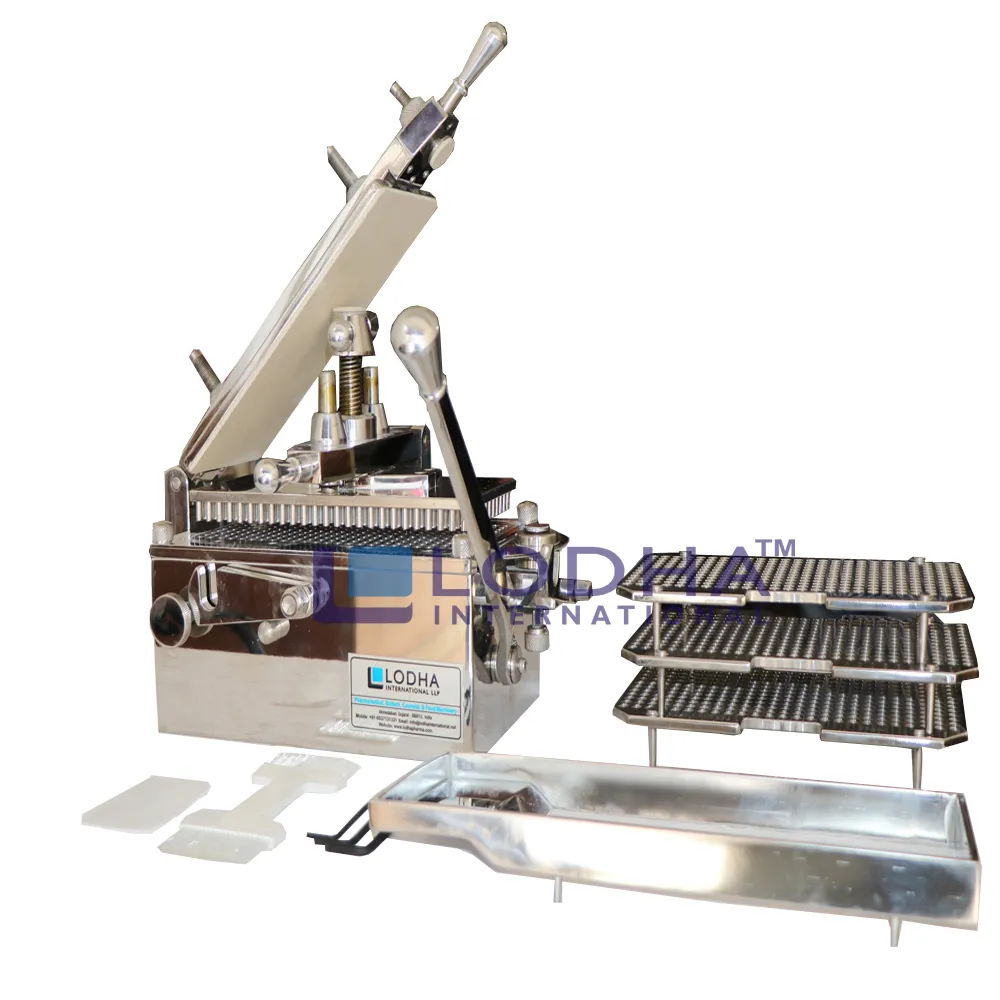

300 Holes Capsule Filling Machine

300 Holes Capsule Filling Machineis hand capsule filling machine model suitable for pilot & production scale batch requirements. Machine is having 300 holes with 25 x 12 combinations made in stainless steel constructions meeting cGMP standard requirements. Machine can fill size- 000 to size 5 capsules with help of interchangeable parts and different machine model. Machine is designed in such a way that it can be easily dismantle for cleaning operations. Though complete process of filling empty capsules and locking of capsules is manual, the machine calls for precision machined components and assembled with highly skilled personnel. Machine having usage in Pharmaceutical, R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Herbal & Ayurvedic medicines, Pilot batch productions etc.

We also provide Automatic Capsule Orienter and Manual Capsule Orienter equipment as optional along with Manual 300 holes Capsule Filler to speed up the process.

Synonyms:

300 Holes Capsule Filling Machine, 300 Holes Capsule Filler, Manual Capsule Filling Machine etc.

Application:

Fill Capsules with powder, pellets & granules

Usage:

Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics

Suitability:

Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

Versions:

GMP Model (SS 316 & SS 304) & Standard Model

300 Holes Capsule Filling Machine Process Operation:

  • Fill empty capsules onto the loading tray and place tray onto the machine. Check the front knob it should be turned to the right.
  • Pull locking lever forward. Push down long handle which will lifts the caps off all the bodies. Set aside the tray containing all the caps.
  • Push locking lever back, by which capsule bodies will drop down and become level with filling surface.
  • Place powder tray on filler: keeps powder from spilling
  • Pour & spread the pre-measured powder. Move extra powder onto powder tray's shelf. Lower tamper and lock
  • Turn handle to compress powder: this allows you to fill more powder in each capsule.
  • Raise tamper & spread extra powder from shelf into capsules: ensures uniform fill weights.
  • Return the tray containing caps to filler. Turn front knob to the left and lower locking plate. Engage lock for locking plate.
  • Hold tamper handle and push down on long handle. Bodies are pushed up into caps: all the capsules are now locked in one step.
  • Disengage lock for locking plate. Lift locking plate and turn front knob to the right.
  • Push down long handle and remove tray of completed capsules.
  • Capsules are filled now. You can turn tray and all the capsules will get out from the tray.

Technical Specification for 300 Holes Capsule Filling Machine:

Model No. LI-CFM 300
Production Output Up to 8000 capsules per hour
Capsule Combinations Size 00, 0, 1 & 2 in single machine model with the help of extra size change parts
Size – 3 and Size – 4 in another machine model with help of any one size extra parts
Size – 5 in single machine model
Sequence of holes 25 x 12 = 300 Holes
Accessories with Machine 3 Loading Tray
1 Top Plate
Powder dispenser
1 PTFE Scrapper
Brush & small tools
Overall Dimension 428mm (L) x 308m (W) x 452mm (H) Approx.
Net Weight 45 Kgs.
Gross Weight 60 Kgs.
