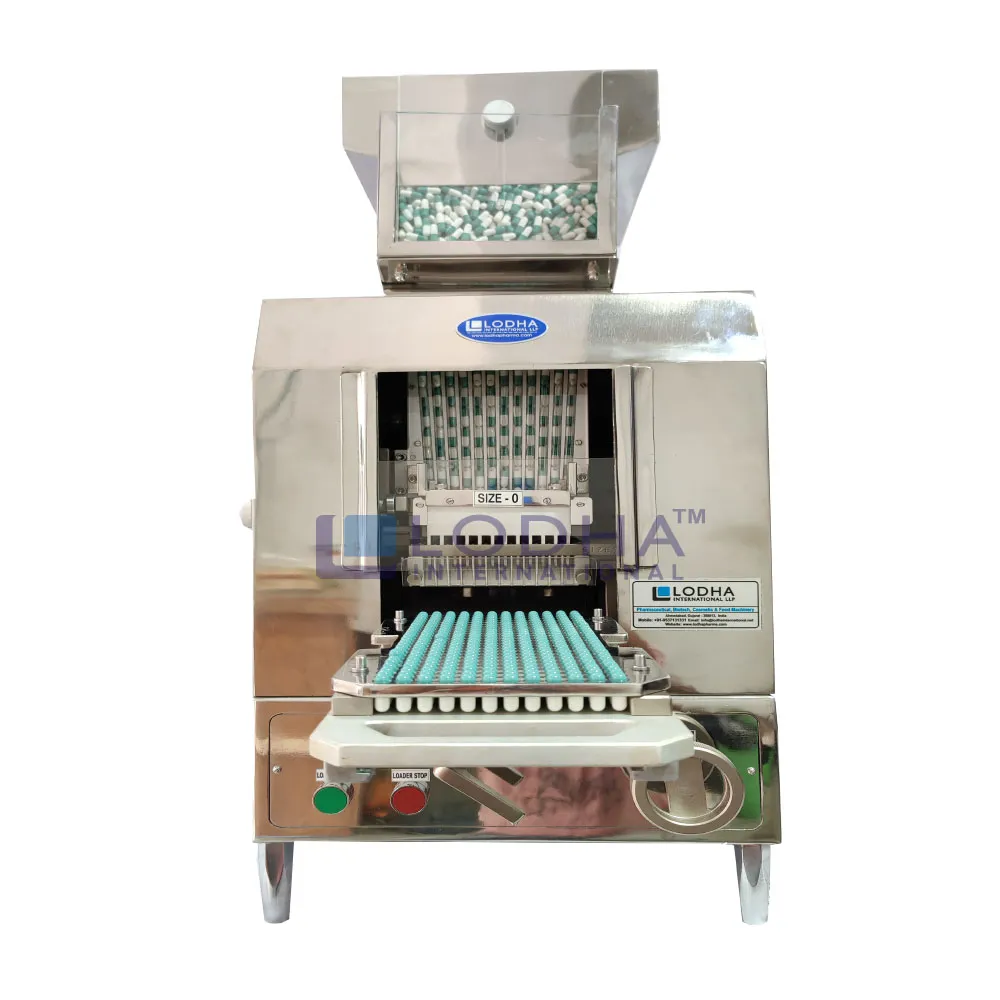

Automatic Capsule Orienter

Automatic Capsule Orienterloads capsules automatically onto loading tray of hand Capsule Filling Machine. Machine is compact occupies minimum space. it gives higher production with much better standard of accuracy.

Loader automatically loads empty capsule in the loading plate for manually operated capsule filling machine, hence it takes normally 5 minutes to load empty capsule in 300 holes loading plate manually, this machine cuts down that time to only 30 seconds. With the help of a Capsule Loader one can fill loading plates of 2 - 3capsule filling machines. Thus, increase the production on one hand and reduce the number of operator & equipment cost on other hand.

Synonyms:

Empty Capsule Inserter, Capsule Arranger, Capsule Inserter.

Application:

Loading trays of Hand Capsule Filling Machine with empty capsules.

Suitability:

Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

LODHA Versions:

Manual Capsule Orienter, Automatic Capsule Orienter

Salient Features for Automatic Capsule Orienter:

  • Compact model complies as per GMP requirements.
  • 220V, Single Phase power voltage, so no special connection required.
  • Low investment higher production output.
  • Simple to operate, can be handled by semi-skilled person.
  • No setting system for any change part.
  • Machine stop automatically after loading is complete.

Empty Capsule Inserter & Arranger Technical Specification:

Model LI-ACL 300
Production Output Up to 36,000 capsules per hour
Capsule Combinations Size 00, 0, 1, 2, 3 and 4 (through format parts)
Sequence of Holes 25 x 12 = 300
Power Voltage 220 Volts, Single Phase, 50 Hertz
Overall Dimension 630 mm X 430 mm X 780 mm
Net Weight 85 Kgs.
Gross Weight 110 Kgs.
