Automatic Capsule Filler

Automatic Capsule Filler is suitable for filling powder, pellets & granules in hard gelatine capsules. It adopts indexing motion and multi-position tamping method to complete capsule orientation, separation, filling, closing and ejection etc. With the help of different size change parts, machine can fill capsules for size #00, #0, #1, #2, #3 & #4. The production speed can be controlled by means of a VFD (Variable Frequency Drive). Machine is designed in accordance with cGMP standards. All product contact parts are made of Stainless Steel 316 & machine covered by Stainless Steel 304. Advantage of the machine is advanced design, study structure, precise dosing, and safe and reliable, high filling rate etc. Machine having wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions etc.

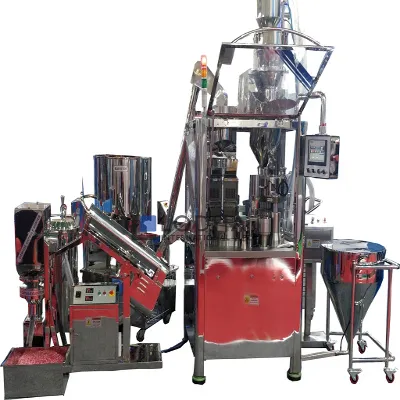

We also provide complete line equipment’s with the Automatic capsule filler machine includes Capsule Sorter Elevator, Capsule Conveying System, Metal Detector,Capsule Polishing Machine, Dust Extractor, Damage Capsule Sorter and Empty Capsule Ejector to make complete Automatic Capsule Filling Line.

Synonyms:

Fully Automatic Capsule Filling Machine, Encapsulation Machine, High Speed Capsule Filling Machine.

Application:

Fill Capsules with powder, pellets & granules

Usage:

Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics

Suitability:

Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

LODHA Versions:

LCF - 25, LCF - 40, LCF- 70, LCF - 90 & LCF - 150

Automatic Capsule Filler Machine Special Features:

  • cGMP design with emphasis in powder dust handling: Enclosed with main turn table avoid dust getting into mechanical parts of machine.
  • Enclosed dosing system with dust suction reduces cleaning frequency.
  • Vacuum cleaning station for segment clean-up in each cycle.
  • Efficient capsule separation by means of vacuum.
  • Touch Screen HMI, featuring user friendly controls: production counter, manual / automatic / parameter setup modes, alarms.
  • Precision capsule segments and dosing disk minimizes adjustments following parts changeover.
  • Stainless Steel 304 frames and transparent safety interlock guards.
  • Accurate capsule separation without damaging capsule with wide range of different capsules.
  • Automatic rejection system for Non – separated/ improperly inserted capsule top caps.
  • Quick Fill weight adjustments and high precision dosing tools ensures optimum machine efficiency
  • CE marking and Inspection for European Customers.

Operating Procedure of Equipment:

  • After starting up the machine, the empty capsules in hopper will be fed into the slot of magazine vertically. With each stroke of machine, the fingers of magazine will release one row of capsules into rectifier raceway. The horizontal fingers rectify the direction of capsules and vertical fingers push the capsules into hole of segment with all caps on the up position. The capsules in the holes are sent to each working station along with the intermittent rotation of the turn table.
  • At the 1st& 2nd station, the vacuum system separates the capsules in position.
  • At 3rd station, the lower segment with capsule body extends out ready for the filling.
  • 4thstation uses to fill pellets
  • At the 5th station, the tamping pins push the pressed powder slug into capsule body.
  • 6th station to re-joint cap & body segments.
  • At 7th station non-separated capsule gets eject.
  • At 8th station vertical pins pushing body of capsule into the cap for re-join and close the filled capsules.
  • The 9th station is to eject the finished capsules.
  • At the 10th station the holes of segments are cleaned by vacuum cleaner and compressed air. Then the segments are ready for next cycle of operation.

Technical Specification of High Speed Encapsulation Machine:

SR. No.Machine ModelLCF– 25LCF – 40LCF– 70LCF - 90LCF - 150
1Production Output / hr.25,00040,00070,00090,0001,50,000
Capsule Sizes25 x 12 = 300 Holes
2Material of Construction:
Contact parts
Non-Contact parts

SS 316
SS 304

SS 316
SS 304

SS 316
SS 304

SS 316
SS 304

SS 316
SS 304
3Power Supply3 Phase, 415 Volts, 50 Hertz
Power Consumption6 H.P. (Machine + Vacuum Pump + Dust Extractor)6 H.P. (Machine + Vacuum Pump + Dust Extractor)7.5 H.P. (Machine + Vacuum Pump + Dust Extractor)7.5 H.P. (Machine + Vacuum Pump + Dust Extractor)7.5 H.P. (Machine + Vacuum Pump + Dust Extractor)
4Compressor Air Required4 CFM
Vacuum1000 CFM, 60 Hg
Ambient Temperature21°C ±3°C
Humidity40% - 44% RH
5Machine Dimensions
Length (in mm)
Width (in mm)
Height (in mm)
975
875
1955
975
875
1955
1300
1200
2300
1275
1200
2200
3200
3200
2300
Filling Line Dimension3000mm x 3000mm x 2300mm approx.3000mm x 3000mm x 2300mm approx.3200mm x 3200mm x 2300mm approx.3200mm x 3200mm x 2300mm approx.3200mm x 3200mm x 2300mm approx.
6Net Weight Approx. (in Kgs.)850850140016001550
