Automatic Capsule Counting Line, Automatic Capsule Counting Machine

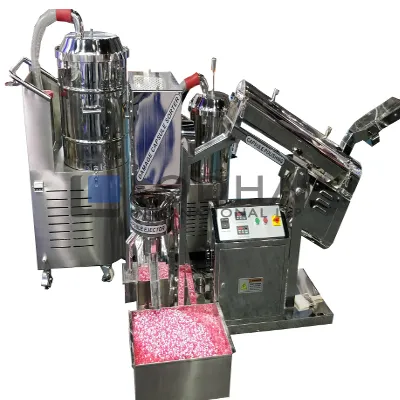

Automatic Capsule Counting Line

Automatic Capsule Counting Line is suitable for counting, filling, capping & labelling of Capsule Bottles. The Filling Line consist different machines connected with each other to make online operations. All equipment’s complies as per GMP requirements and suitable with different capsule & bottle sizes. With this line one can fill 1 to 1000 capsules into bottles with moderate production speed. Capsule Counting & Bottle Packing Line having wide usage in Pharmaceutical, R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations and Ayurvedic medicines.

Synonyms:

Capsule Counting & Bottle Filling Line, Capsule Bottle Packaging Line.

Application:

Counting capsules and filling into bottles.

Usage:

Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics

Suitability:

Hard Gelatine, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes

Automatic Capsule Counting Line includes below machines:

Automatic Capsule Counting Machine
Automatic Bottle Capping Machine
Induction Sealing Machine
Automatic Bottle Labelling Machine

Technical Specification:

Automatic Capsule Counting Machine
Capsule Sizes	00, 0, 1, 2, 3, 4 & 5 sizes
Models Available	Single Disc & Double Disc
Feeding of Capsules	In Counting Disc
Feeding of Bottles	Through Turn Table
Power Consumption	1 H.P.
Overall Dimension	2560 mm (L) x 1570 mm (W) x 1695 mm (H) approx.
Automatic Bottle Capping Machine
Power Supply	1 H.P.
Bottle diameter	Up to 95 mm
Cap size	As per sample
Conveyor height	850 – 875 Adjustable
Dimension	1280 mm (L) X 720mm (W) X 1720 (H) approx.
Online Induction Sealing Machine
Conveyor Length	1.5 meter
Conveyor Width	6” wide slat chain
Power Voltage	220 volts, Single Phase, 50 Hertz, 15 amp.
Overall Dimension	640mm (L) x 650 mm (W) x 1640mm (H) approx.
Automatic Bottle Labelling Machine
Container Diameter	22mm to 105mm
Label Height	16 mm to 95 mm
Label Length	25 mm to Unlimited
Label Roll Diameter	300 mm Max.
Gap between Label Core Diameter Roll Diameter	Min. 5 mm
Label Core Diameter	75 mm
Overall Dimension	1485 mm (L) x 780 mm (W) x 1400 mm (H) approx.

Send Inquiry

Automatic Capsule Counting Line
