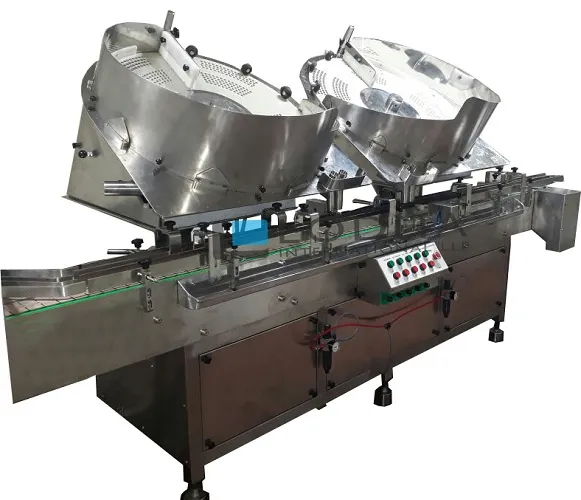

Construction of Machine

Automatic Capsule Counting & Filling Machine is suitable for plastic and glass bottles. It is widely applied for capsule counting for small scale production in Pharmaceutical, Neutraceuticals, Cosmetics, Herbal and Ayurvedic industries. This machine is offered in output capacities ranging from 60 to 150 bottles per minute.

Tablet / Capsule Counting & Filling Machine performs the dual operation of counting Capsules/Tablets for Containers/Bottles and filling them as per set quantity parameter. This can be used for commercial purpose as capsule counter and filling machine or as a lab scale capsule counter & filler machine.

The machine is designed as per GMP standards and consists of Stainless Steel frame structure with Stainless Steel contact parts.

Integrated with the filler, under the hopper is the vacuum system that provides a dust free passage of stocks to the containers. The system also gives efficient and smooth running of the disc when uncoated tablets are counted.

Salient Features for Tablet / Capsule Counting & Filling Machine

  • With advanced vibration and multi-channel feeder
  • Computer control with active image counting
  • Transfer the bottle automatically with slat type conveyor
  • Performs system test automatically
  • Automatically Stop System
  • Easy to setting change parts for different size bottles
  • Counter differences with less than 0.1%
  • Full-set protective device keep operation fixed and reliable
  • Intellectual touch screen control system which is easy to control
  • Stable operation with lower noise.
  • Easy to dismantle with a minimum amount of parts for clean up

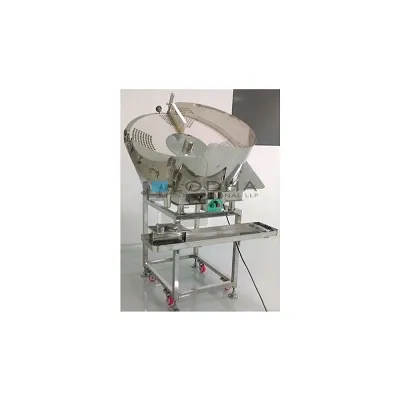

Construction of Machine

Semi-Automatic Single Disc Capsule Counting Machine is compact highly efficient and cost-effective machine model/ It can easily count and pack capsules & tablets of any size. The design of the Machine is ergonomic, easy to handle and maintain for operators. Thetrouble-free operations and accurate results of these semi-automatic machines help in maintaining GMP standards.

Salient Features of Semi Automatic Capsule Counting Machine

  • Each disc is custom designed and manufactured to meet customer's needs.
  • The machine is provided with adjustable filler which can be elevated from 20 to 25 degrees, to facilitate entry of the products into the disc holes.
  • The machine is fitted with superior quality delivery chutes which direct the product from the counting disc into the stainless-steel filler tubes of various sizes, to suit different containers, suitable to work on 3 phase ac, 1 HP motor, 1440 rpm with variable speed drive.
  • The entire machine is mounted on MS body.
  • Simple operation, only one operator required, and operating training can be done in 10 min.
  • The machine is provided with one countable type disc.
  • G.M.P. model: M.S. body of the machine cladded with SS sheet".

Technical Specification for Semi Automatic Capsule Counting Machine

  • Contact Parts: Stainless Steel 316.
  • Power consumptions: 0.75 KW / 1 H.P.
  • Air Consumption: 40 Litre/minute@ 6 bar pr.
  • Power supplyA.C. 3 Phase440 V, 50 Hz Motor-1440rpm
  • Packing Case Dimension1981 (L) X 1219 (W) 1016 (H) mm
  • Net Weight: 290 Kg.
  • Gross Weight: 425 Kg.
